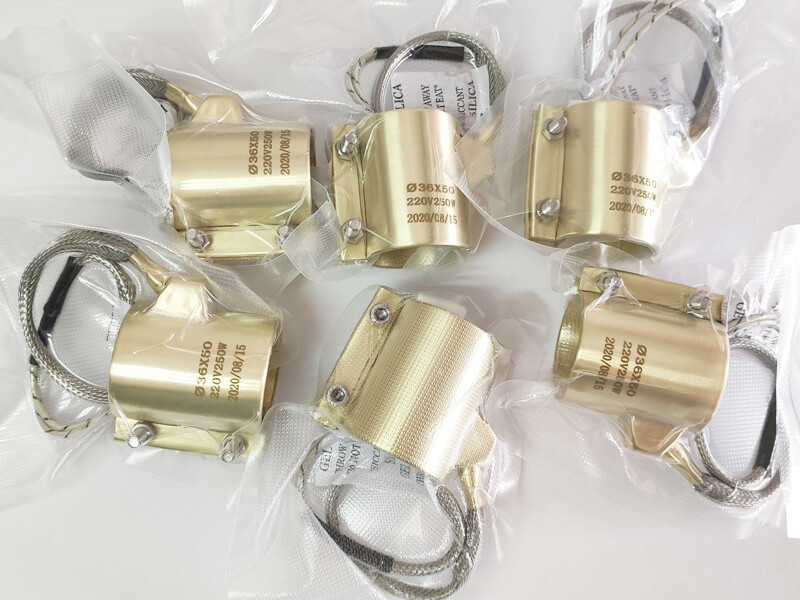

Copper heaters view 1
Copper heaters view 2

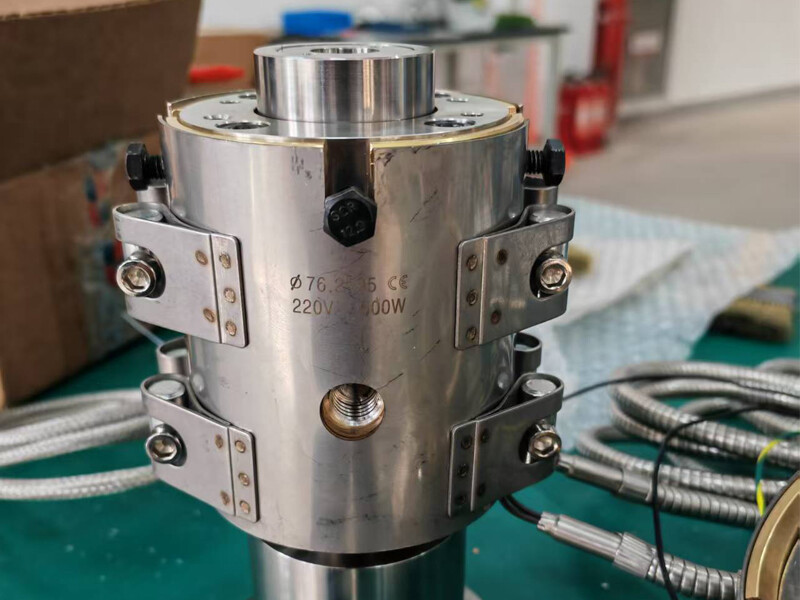

Copper heaters view 3
Heaters

Copper heaters

With regard to thermoplastics with high melting points and stringent requirements on heating rate and temperature uniformity, copper heaters are a more suitable choice than ceramic heaters. The thermal conductivity of copper is 8-10 times that of steel, much higher than that of aluminum and ceramics. Its power range is 5-8W/cm² and it havs high temperature control accuracy, making it suitable for long-term continuous production. It is not easily damaged or broken like ceramic heaters, and its service life is usually 2-3 times that of ceramic heaters. In the long run, it has a higher cost-effectiveness. Our copper heaters have good quality, short delivery time, and reasonable prices. Welcome to inquire!

Key Specifications

Voltage
230V/400V, 277V/480V
Power range
5~8W/cm²
Max. working temperature
450℃
Insulating material
MgO
Housing material
Stainless steel or copper
Power connection
Resistant to 500℃ cables and connection box
Cost
High
Inquire Now

Typical Applications

Barrel heating
Adaptor heating
Manifold heating
Parison heads heating
